Polymethyl methacrylate (also known as poly methyl methacrylate), referred to as PMMA, is a versatile and widely used thermoplastic valued for its exceptional optical clarity, high strength, and excellent weather resistance.
PMMA injection molding （or called acrylic injection molding）is a precision manufacturing process that transforms this material into complex, high-quality components for industries ranging from automotive to medical devices.
This article explores the technical aspects of PMMA injection molding, including material properties, process parameters, equipment considerations, and challenges, providing insights into optimizing production for superior performance and cost-efficiency.

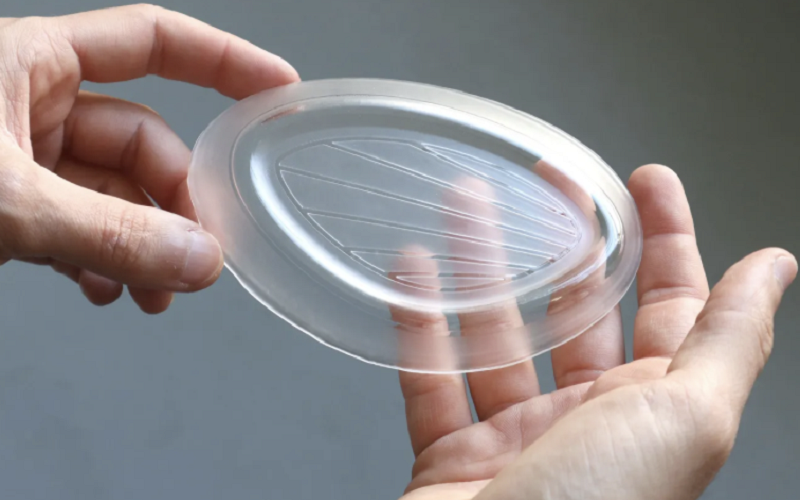

What Is PMMA ？
PMMA known as acrylic or plexiglass, is a polymer that is produced through the polymerization of monomer methyl methacrylate.
PMMA demonstrates excellent physical properties such as extensive tensile strength, great flexural strength, and transparency, like glass.
During the polymerization process of PMMA, the double bonds in the methyl methacrylate monomers undergo a polymerization reaction catalyzed by initiators, forming a high molecular weight polymer chain structure.
In injection molding, PMMA is typically used in the form of acrylic resin, which is prepared, melted, and flowed into molds to ensure quality and aesthetic appeal.
PMMA is widely used material in the production of transparent materials, medical devices, construction materials, and handicrafts. Acrylic molding is a common method for shaping PMMA into various products, especially where high precision and transparency are required.
PMMA Material Properties
The main characteristics of acrylic plastic are as follows:
Mechanical Properties
PMMA has high mechanical strength, with a relative molecular mass of approximately 2 million. It is a long-chain polymer with flexible molecular chains, resulting in superior strength. Its tensile and impact resistance are 7 to 18 times greater than that of ordinary glass.
This high mechanical strength makes PMMA suitable for demanding applications such as complete pressure hulls in deep-sea submersibles, where maintaining pressure and safety at great depths is critical.
Thermal Properties
PMMA exhibits excellent thermal stability, maintaining structural integrity at elevated temperatures. However, when the temperature exceeds 250°C, PMMA begins to decompose, releasing harmful gases such as methylene and carbon dioxide.
The decomposition temperature of PMMA is slightly above 270°C, which is a critical parameter for understanding the safe processing range. The thermal decomposition temperature is a key parameter for processing PMMA safely, as exceeding it can lead to material degradation.
Chemical Stability
PMMA is relatively stable under general chemical conditions and shows good chemical resistance to acids, alkalis, and solvents. However, it may dissolve in certain organic solvents, particularly those containing ketones and ethers.
Optical Properties
PMMA possesses outstanding transparency, with a light transmittance of up to 92%, which is higher than that of glass. Additionally, under uv light filtering, PMMA demonstrates better stability compared to polycarbonate.
Additives can also be incorporated into PMMA to enhance light diffusion, allowing for specialized optical effects in applications that require controlled light scattering or improved aesthetic qualities.
Its high transparency across the ultraviolet and visible light spectrum makes it the preferred material for optical-related applications.
Properties | Parameters |
|---|---|
Molecular Formula | (C5O2H8)n |
Density | 1.15 – 1.19 g/cm³ |
Melting Point | 150℃ |
Light Transmittance | 92% |
Tensile Strength | 50-77MPa |
Glass Transition Temperature | 105℃ |
Why PMMA is Mostly Used for Injection Molding?
Polymethylmethacrylate is a strong, clear, high-transparency thermoplastic with excellent optical clarity that is often used as an alternative to glass.
PMMA injection molding（acrylic injection molding） is a type of plastic injection molding, and compared to plastic injection molding of other materials, it offers unique benefits such as superior optical properties and ease of fabrication.
PMMA can be injection molded into complex shapes, making it ideal for intricate designs and detailed components. This process produces high quality plastic parts that are durable, well-finished, and suitable for various industries, including automotive, medical, and electronics.
Compared to polycarbonate injection molding, PMMA injection molding is less expensive and enables custom molding. As a result, PMMA materials are also favored by the additive manufacturing industry for prototyping.
At the same time, acrylics have high tensile strength, can withstand loads, do not absorb odors, and can maintain tight tolerances during the injection molding process.
In sunny and rainy conditions, PMMA is resistant to uv rays and, when in contact with water, remains stable and does not release bisphenol A (BPA), a chemical found in many plastics that adversely affects human health, making it suitable for outdoor applications.
PMMA’s light weight compared to glass makes it easier to handle and reduces transportation costs. Glass PMMA is often chosen as a superior alternative to traditional glass in applications such as safety barriers, building windows, and automotive lenses due to its impact resistance and flexibility.
Overall, the compatibility between PMMA and injection molding techniques is exceptional, providing an economical injection molding solution while manufacturing high-quality products.
PMMA Injection Molding Process Parameter Optimization
In the PMMA injection molding process, the powder or granules are heated to a molten state, creating molten acrylic, which is then injected into an injection mold under high pressure.

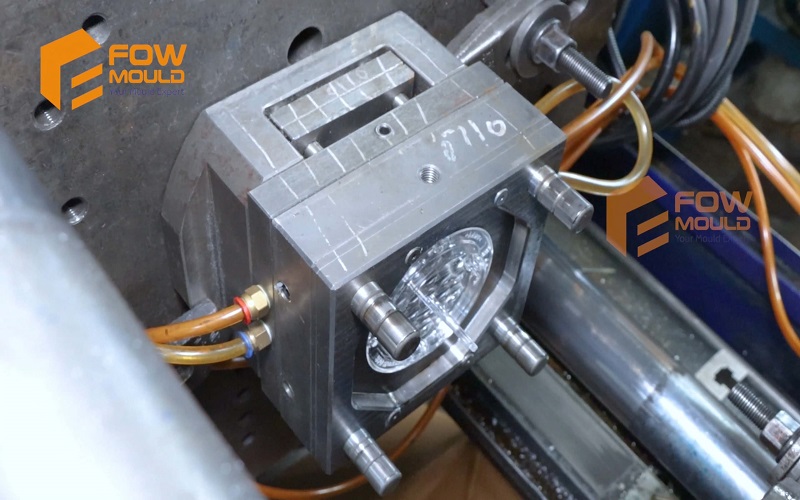

The injection mold shapes the PMMA and controls the cooling process to ensure the final product’s quality. The runner diameter in the mold design is crucial for ensuring proper flow of PMMA during injection molding and achieving consistent product quality.
After cooling and setting, the mold is removed, resulting in custom PMMA molding products. Below are the detailed injection molding process parameters for PMMA:
Material Treatment
For PMMA plastic molding, a hot air circulation drying device is used, with drying temperatures of 70-80°C for 2-4 hours and a material layer thickness of 30mm.
Injection Temperature
Set melt temperature between 160-270°C, balancing flowability and material degradation. Use the air injection method to monitor and adjust melt temperature accurately.
Mold Temperature
Control injection mold temperature between 40-60°C (never exceeding 80°C) using water cooling for thin parts or controlled heating for thicker, complex parts to reduce internal stresses.
Injection Pressure
Adjust based on wall thickness—80-100MPa for thick-walled, easy-flow parts, and up to 140MPa for challenging geometries with restricted flow.
Injection Speed
Increasing the injection speed can benefit PMMA melt filling, but high speeds often compromise the quality of molded products. It can result in unclear areas around the gate, significantly reducing the product’s transparency and increasing internal stresses.
Design Tips For PMMA Injection Molding
Optimizing the design for PMMA injection molding is critical to achieving high-quality, defect-free acrylic parts with excellent optical clarity, mechanical strength, and dimensional accuracy.
The mold temperature control range for PMMA injection molding should be set between 60°C and 80°C. The diameter of the main runner must be designed to match the inner taper, with the optimal inner taper angle ranging from 5° to 7°.
For products with a wall thickness of 4mm or more, it is recommended to set the angle to 7°, and the main runner diameter should be expanded to 8 to 10mm.
Additionally, the overall length of the mold gate should not exceed 50mm. For products with a injection molding wall thickness less than 4mm, the runner diameter should be controlled within 6-8mm. When the product wall thickness is greater than 4mm, the runner diameter should be adjusted to 8-12mm.
Regarding gate shapes, for edge-type, fan-type, and tab-type gates, their depth should be set to 0.7 to 0.9 times the product wall thickness (denoted as t); the diameter of needle-type gates should be selected between 0.8 and 2mm.
For PMMA with low melt viscosity, smaller gate sizes should be chosen. Common venting holes in molds typically have a depth of 0.05 to 0.07mm and a width of 6mm.
Finally, the draft angle in the cavity part should be controlled between 30′-1° and 35′-1°30′ to ensure smooth ejection of the molded parts.

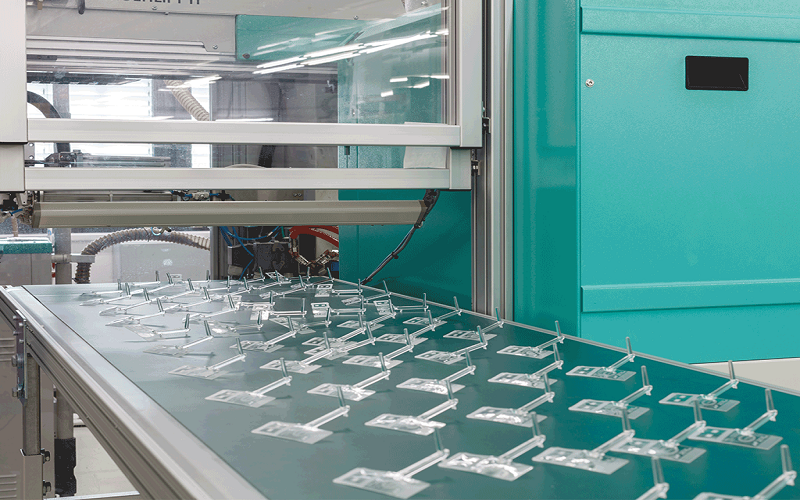

Applications Of PMMA Injеction Molded Parts
PMMA injection molding enables the creation of precise, high-quality products with desired shapes after cooling and solidification.
This versatile process is ideal for manufacturing a wide range of components, including durable plastic automotive parts, crystal-clear mobile phone screens, robust lamp holders, and transparent aquariums, leveraging PMMA’s exceptional optical clarity, strength, and weather resistance.
Automotivе Industry
Thе automotivе sеctor rеliеs hеavily on PMMA injеction molding to produce a range of componеnts that offеr both safеty and stylе. PMMA’s outstanding optical propеrtiеs make it idеal for manufacturing hеadlamp lеnsеs, еnsuring bright and clеar lighting for еnhancеd road visibility.
Similarly, tail lights bеnеfit from PMMA’s transparеncy, contributing to thе vеhiclе’s ovеrall aеsthеtics. Additionally, PMMA is usеd for instrument panels, providing a lightwеight and visually appеaling finish to thе car’s intеrior componеnts.
Construction Industry
PMMA has unique properties for the construction industry such as optical clarity and UV resistance. It is an ideal material for construction applications such as sound barriers, facades, aquaria, and greenhouses.
Its excellent light transmission allows natural daylight to penetrate buildings efficiently, reducing the need for artificial lighting and enhancing energy savings. PMMA sheets offer durability against weathering and environmental factors, maintaining their clarity and structural integrity over time.
Medical Industry
PMMA plays a crucial role in thе mеdical fiеld, whеrе prеcision and biocompatibility arе paramount. Intravеnous tubing, for instance, bеnеfits from PMMA’s transparеncy, allowing mеdical professionals to monitor fluid flow еfficiеntly.
PMMA cuvеttеs arе usеd for laboratory blood tеsting, providing a clеar viеw of thе samplе for accuratе analysis. Morеovеr, PMMA dеntal matеrials, such as dеnturеs and clеar alignеrs, offеr patiеnts comfortablе and visually appеaling solutions for thеir oral hеalth nееds.
Elеctronics and Display Panеls
Thе еlеctronics industry rеliеs on PMMA’s еxcеptional optical clarity to manufacturе display panеls for smartphonеs, tablеts, and computеr monitors. Thе matеrial’s transparеncy еnsurеs crisp and vivid imagеs, еnhancing thе usеr еxpеriеncе.
PMMA lеnsеs arе also utilizеd in camеras and optical dеvicеs, еnsuring imagеs’ fidеlity by rеducing optical distortions.

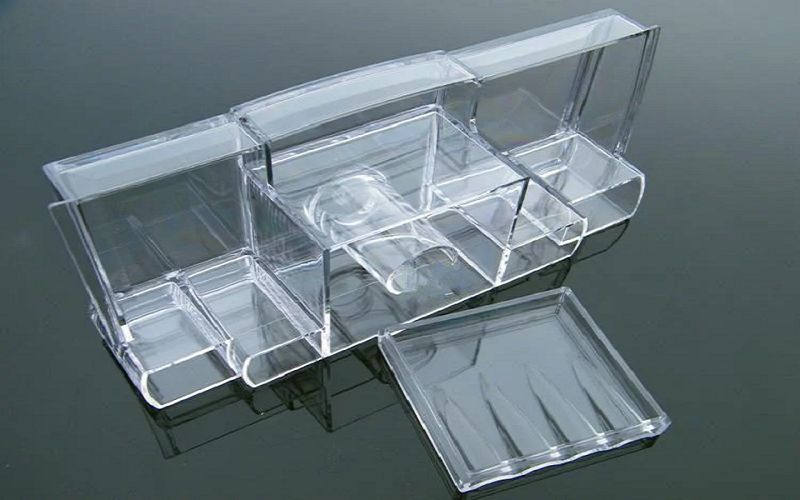

Housеhold and Consumеr Goods
PMMA’s lightwеight, durability, and vеrsatility make it a popular choice for various housеhold itеms and consumеr goods.
Kitchеnwarе, such as transparеnt food containеrs, bеnеfits from PMMA’s clarity, allowing usеrs to idеntify contеnts еasily.
Additionally, PMMA is used to manufacturе storagе containеrs, providing a durablе and long-lasting solution for organizing household itеms.
Advantages Of PMMA Injection Molding
PMMA injection molding offers many advantages, making it a highly sought-after material for various applications.
For example, in the sanitary ware industry, PMMA is valued for its high brightness and other benefits over traditional ceramic materials, making it a modern alternative for manufacturing sanitary ware. Let’s explore these advantages in more detail:
Optical Clarity
One of the most remarkable features of PMMA is its exceptional optical clarity. Compared to other materials, PMMA provides unparalleled transparency, closely resembling glass but without weight. This characteristic makes it an ideal choice for products where visual clarity is crucial.
Lightweight and Impact-Resistant
PMMA’s lightweight nature distinguishes it from traditional glass. This property makes it highly desirable in applications where weight matters, such as aerospace components and medical devices.
Additionally, its impact-resistant properties reduce the risk of shattering upon accidental impacts, improving safety in various scenarios.
UV and Weather Resistance
PMMA is known for its excellent UV and weather resistance, making it suitable for indoor and outdoor applications. As a weather-resistant material, PMMA can withstand prolonged exposure to ultraviolet rays without degrading.
When exposed to sunlight, PMMA products do not undergo yellowing or degradation over time, ensuring their appearance remains unchanged and preserving their longevity. This quality benefits outdoor signage, architectural glazing, and automotive light covers.
Scratch Resistance
Although PMMA has excellent surface hardness, it is susceptible to scratching. However, advances in injection molding and surface treatments have improved its scratch resistance, making acrylic products more durable and maintaining their glossy finish for longer periods.
Efficient Production
The acrylic injection molding process utilizes specialized injection molding machines that ensure precise control over parameters such as barrel temperature, injection pressure, and mold temperature. This control enables the production of high-quality parts with consistent dimensions and surface finish.
The use of multi-stage injection techniques and low temperature plasticization further optimizes the flow and reduces internal stresses, enhancing the overall quality of the molded parts.
Disadvantages Of PMMA Injection Molding
The main disadvantages of PMMA injection moulding include the following:
Surface Hardness is Low
PMMA material has relatively low surface hardness, making it prone to scratches and abrasions, which requires careful protection during use and storage.
Low Impact Resistance
PMMA exhibits relatively poor impact resistance, making it susceptible to cracking or damage from external impacts.
Poor Flowability in Molding
PMMA has high melt viscosity and poor flowability in its molten state, posing higher demands on injection molding equipment.
Sensitivity to Shear Forces
PMMA material is very sensitive to shear forces, and even minor defects in the molded parts are easily noticeable, increasing processing difficulty and costs.
Conclusion
PMMA injection molding has become a transformative force in manufacturing, delivering exceptional optical clarity, lightweight versatility, and outstanding weather resistance.
These impressive properties have opened new horizons for designers and manufacturers across industries—from automotive parts and medical devices to electronics and consumer products.
Whether you require transparent, lightweight solutions or durable, aesthetically pleasing designs, Fowmould’s expertise in precision engineering and plastic manufacturing guarantees high-quality, tailored products that meet your exact needs.
