Powder Injection Molding (PIM) is an advanced manufacturing process that combines powder metallurgy and injection molding technologies, widely used to produce complex-shaped metal and ceramic components.
With its high precision and high efficiency, PIM technology plays an important role in various industries such as medical devices, automotive, electronics, and aerospace.
This article will provide a detailed introduction to the PIM process, material selection, advantages, and applications, helping readers fully understand the value and key practical aspects of this efficient and precise manufacturing method.
What Is Powder Injection Molding？
Powder Injection Molding (PIM) is an advanced manufacturing technology that combines the high design flexibility of plastic injection molding with the excellent material properties of powder metallurgy.

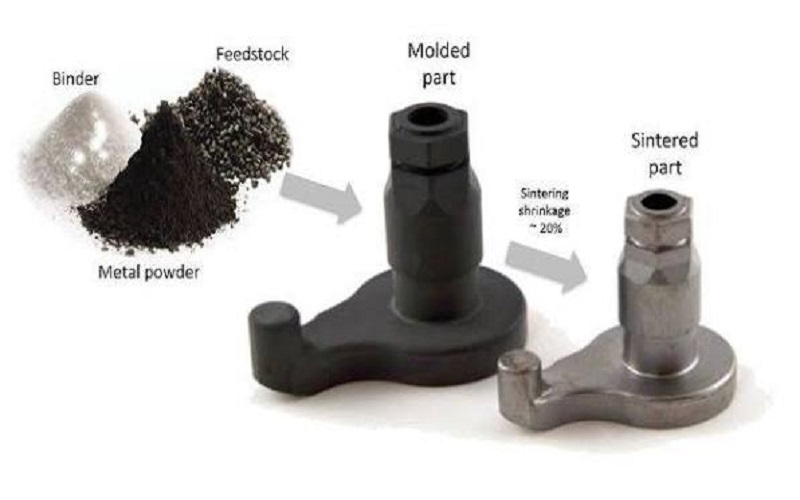

It involves mixing finely powdered metal or ceramic powders with a polymer binder to create a flowable feedstock, which is then injected, debound, and sintered. This process efficiently produces metal or ceramic parts with complex shapes and precise dimensions, achieving near-net-shape manufacturing.
PIM was developed in the 1970s in the U.S. In recent years, as it has transitioned from the laboratory to industrial applications, PIM has become an important technology in the field of precision manufacturing, especially suitable for mass production of complex three-dimensional structures that are difficult to achieve with traditional machining or casting.
How Does Powder Injection Molding Work?

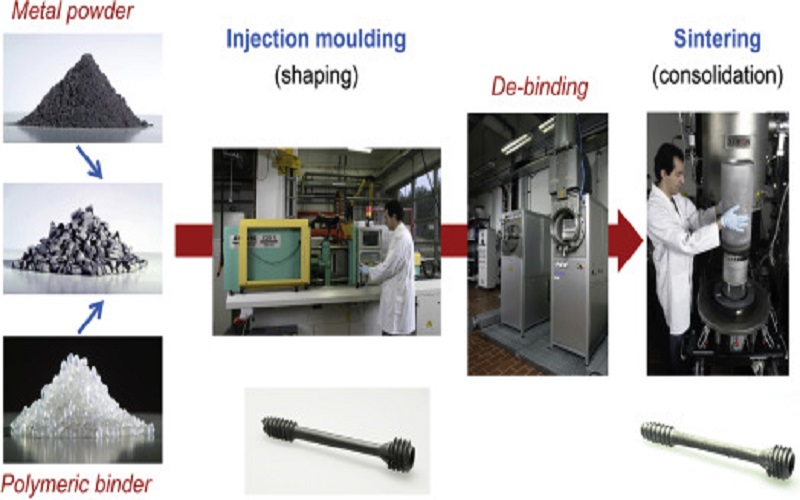

As a derivative of polymer injection molding, the PIM process involves feedstock preparation, injection molding, debinding, and sintering. Each stage plays a vital role in ensuring the final component’s quality, precision, and mechanical properties.
Feedstock Preparation
This is the starting point of the entire process and the key foundation that determines the quality of subsequent molding and sintering.
PIM typically uses a mixture containing 35 to 50 vol% of polymer binder material combined with finely powdered metal or ceramic powders. The binder material provides the necessary flowability and shape retention during molding.
Injection Molding
The prepared feedstock is heated and injected under pressure into molds with complex shapes, including those with multiple cavities.
The injection molding stage leverages the design capabilities of the process to produce components with intricate geometries and high dimensional accuracy. The ability to mold complex parts with thin walls and fine details is a significant advantage over other methods.
Debinding
After molding, the binder material must be carefully removed through a debinding process, which can involve thermal, catalytic, or solvent-based methods.
This step is crucial as it affects the mechanical properties and surface quality of the components. Proper debinding ensures the removal of binder without causing defects such as swelling or cracking.
Sintering
In the final stage, the molded and debound parts are heated to temperatures below the melting point of the base powders in a controlled atmosphere. This sintering process fuses the powder particles together, achieving near-full density (typically 95% to 99% of theoretical density) and imparting excellent mechanical properties.
The sintering also causes volumetric shrinkage, which must be accounted for in the mold design to maintain dimensional accuracy. Additionally, the sintering stage can achieve a surface finish of 30 µm Ra, contributing to the high-quality surface characteristics of the final components.
Through this combination of stages, powder injection molding enables the efficient production of high-quality, complex-shaped components in large quantities, offering a cost-effective alternative to traditional manufacturing methods.
Material Selection For Powder Injection Molding Process
The selection of materials for powder injection molding is critical because it directly influences the mechanical properties, durability, and performance of the final components.
A wide range of ceramic materials can be processed, including oxide ceramics such as aluminum oxide or zirconium oxide, as well as non-oxide ceramics such as nitrides, carbides or borides
Ceramic materials processed by PIM are valued for their hardness, wear resistance, and chemical inertness, making them suitable for applications in harsh environments or where electrical insulation is required.
Metals used in PIM processes range from common stainless steels to advanced superalloys and tungsten alloys, each chosen based on the specific application needs such as strength, corrosion resistance, or thermal stability.
Furthermore, the choice of binder in the feedstock is essential to ensure proper flowability during injection molding and complete removal during debinding without leaving residues that could compromise sintering quality.
Polyacetal (POM) is a commonly used binder in PIM due to its excellent mechanical properties and clean decomposition behavior.
Advanced binder systems like TENAC™-C FF520 and FF52P have been developed to enhance flowability and enable catalytic debinding, improving process efficiency and part quality.
Types Of Powder Injection Molding
PIM is mainly divided into two categories based on the type of powder material used: Metal Injection Molding (MIM) and Ceramic Injection Molding (CIM).
The former primarily uses metal powders such as stainless steel, titanium alloys, and tool steels, while the latter focuses on ceramic materials like alumina and zirconia. Both share highly similar process principles but differ in sintering temperatures, atmosphere control, and final performance.

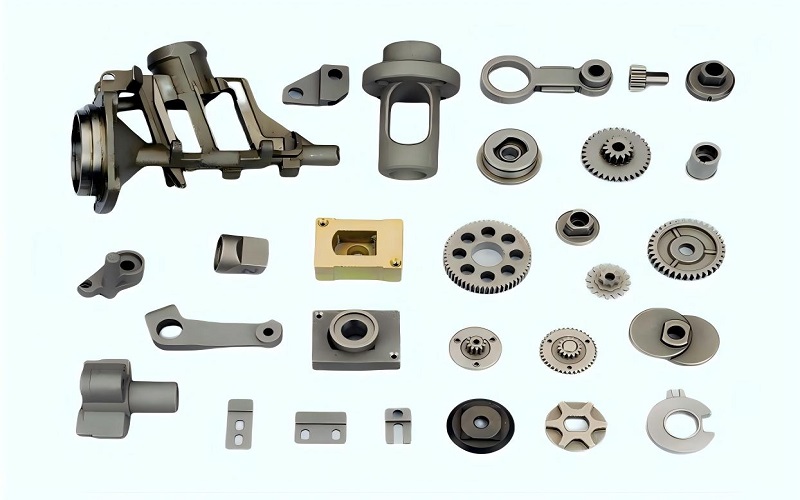

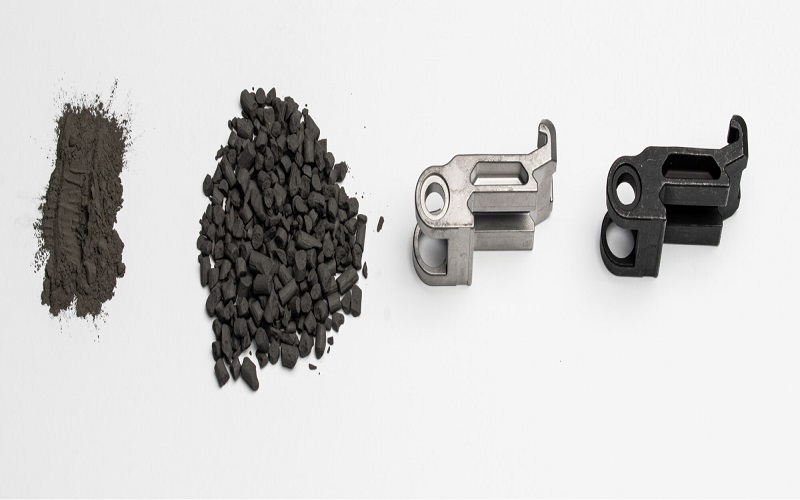

Metal Injection Molding (MIM)
The metal injection molding process leverages the high flowability of metal powders and the high precision of molding technology to produce metal parts with complex geometries.
Various debinding methods, including thermal debinding and catalytic debinding, are employed to remove wax and other organic binders from the molded parts.
MIM process is followed by high-temperature sintering, which achieves dense bonding between metal powder particles, resulting in excellent mechanical and physical properties.
Metal injection molding can produce parts weighing from 0.1 to 300 grams, with tolerances typically around 0.2-0.3% of nominal dimensions. Surface finishes of 15 to 30 µm Ra can be achieved, especially when using fine powders.

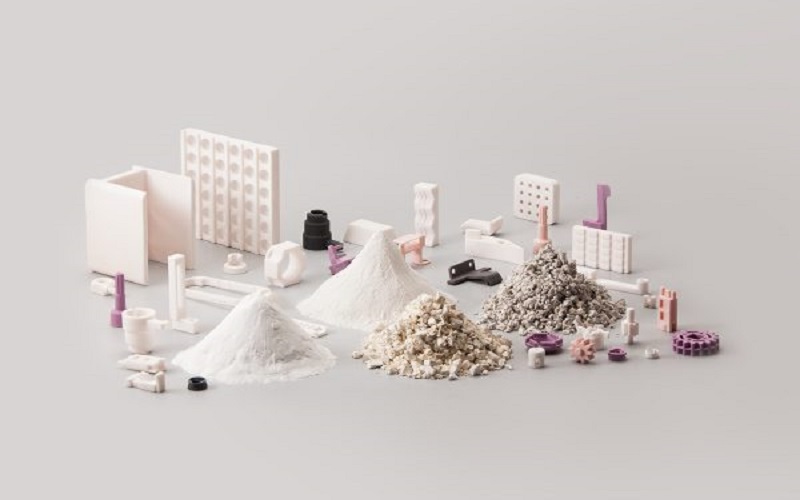

Ceramic Injection Molding (CIM)
Ceramic injection molding is mainly used to manufacture oxide ceramic parts such as alumina and zirconia ceramics, which have excellent hardness and chemical stability.
The sintering temperature in CIM is typically higher than in MIM to ensure thorough densification of ceramic particles and achieve the required mechanical strength and thermal properties.
Liquid phase sintering is widely used in CIM to promote particle bonding and improve the density and performance of the parts.
Additionally, PIM technology supports multi-cavity mold designs, enabling high volume production that significantly improves production efficiency and cost efficiency.
Moreover, the use of core and skin techniques in powder co-injection molding allows the production of components with different materials in the core and surface, enabling cost reduction and enhanced surface properties.
In summary, the combination of diverse material options, advanced binder systems, and versatile molding techniques makes powder injection molding a highly adaptable and efficient manufacturing process for producing complex metal and ceramic components at scale.
Advantages And Limitations of Powder Injection Molding
Powder injection molding, as an advanced process that combines the advantages of plastic injection molding and powder metallurgy, has shown significant competitiveness in the manufacturing of precision and complex parts, but it also has certain technical and economic limitations.
Advantages Of Powder Injection Molding
PIM includes advantages such as high dimensional accuracy and repeatability. It is particularly effective for producing small, lightweight, and highly detailed components that would be difficult or impossible to manufacture using traditional machining or casting techniques.
Mass Production of Complex Shapes: This process allows for large-scale production of parts with complicated shapes, including internal threads, undercuts, and thin walls, which are difficult to achieve with traditional methods.
Reduced Material Waste: Due to its near-net-shape manufacturing capability, powder injection molding significantly reduces raw material waste, lowering costs while promoting sustainable manufacturing.
High Dimensional Accuracy and Surface Quality: Parts typically achieve tolerances of 0.2-0.3% of nominal dimensions, with surface roughness refined to 15 to 30 micrometers Ra, depending on the powder and process parameters.
Material Versatility: Applicable to a wide range of metals and ceramics, including stainless steel, superalloys, carbides, and oxide ceramics, meeting the needs of various industries.

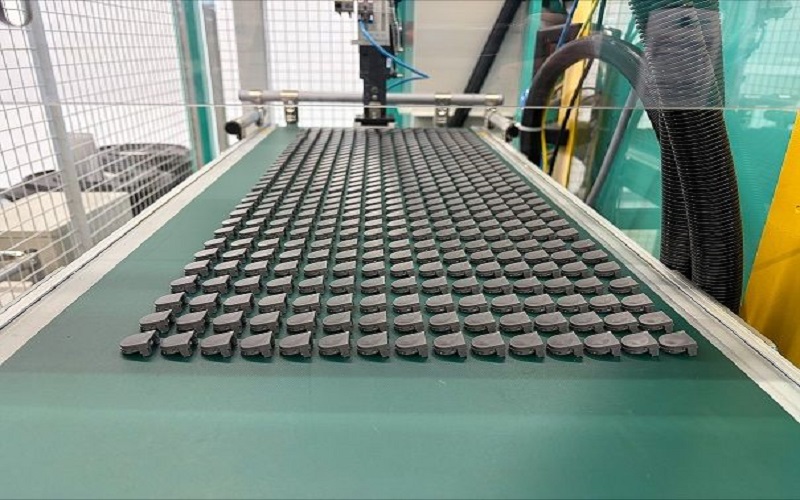

Cost-Effective Mass Production: Suitable for large-scale production runs exceeding 10,000 units, where initial mold investment can be amortized over high volumes.
High Repeatability and Precision: Ideal for manufacturing small, lightweight, and highly detailed parts, ensuring product consistency and high quality.
This makes it an excellent choice for companies seeking to manufacture complex parts at scale with consistent quality.
Limitations Of Powder Injection Molding
Despite its advantages, PIM faces certain limitations. The initial tooling and setup costs can be high, making the process less economical for low-volume production or prototyping.
The complexity of the debinding and sintering stages requires precise control to avoid defects such as warping, cracking, or incomplete binder removal, which can compromise the mechanical properties and surface quality of the final parts.
Furthermore, the sintering process involves volumetric shrinkage, typically around 15-20%, which must be accurately compensated for in mold design. This shrinkage can complicate dimensional control, especially for very tight tolerances or larger parts.
In summary, while powder injection molding offers significant benefits for producing complex, high-precision components at scale, careful consideration of its economic and technical constraints is essential for successful application.
Applications Of Powder Injection Molding
PIM applications span multiple fields, including automotive, medical, aerospace, and consumer electronics.
Medical and Dental: Orthodontic brackets, surgical instruments, minimally invasive surgical components, implants, etc., utilizing biocompatible materials such as titanium alloys and stainless steel with high precision.
Automotive Industry: Precision gears, sensor components, turbocharger parts, lock assemblies, etc., meeting high strength and wear resistance requirements.
Consumer Electronics and Communications: Internal structural parts of mobile phones, connectors, heat dissipation components, precision parts for watches and glasses.
Aerospace and Defense: High-temperature alloy structural parts, lightweight complex components, precision parts for weapon systems.
Other Fields: Electric tool gears, sports equipment accessories, electronic packaging, filter elements, and industrial wear-resistant parts.
Overall, PIM is especially suitable for medium to large volume production with complex geometries and high material performance requirements. It has become an important alternative to traditional machining and casting processes.
With continuous technological advancements and expanding application areas, PIM technology is expected to grow at an annual rate of 20% to 40%, demonstrating strong development potential and market demand.
Conclusion
In summary, powder injection molding holds a unique position in the production of complex, high-performance parts: it overcomes the geometric limitations of traditional machining and casting, while achieving near-forging level material properties in medium to high volume production.
Therefore, it has become an important solution for precision components in fields such as medical, automotive, electronics, and aerospace.
