The Benefits of Using Plastic Basket Mould

Storage baskets are great for saving space and keeping things organized. There’s a variety of styles, colors, sizes to choose from – you’ll find one that suits your needs in no time! They make perfect additions both at home or work as they can be used anytime without taking up too much room on the floor (or tables). Make sure when buying new ones though; don’t just get any old basket because those may not last nearly so long if put through regular use like this kind does: take care while shopping by looking closely into its features such as durability/quality material construction etc..

1、Design points of storage basket mold

The design should be as light and strong as possible while still meeting all other requirements. The pattern features anti-deformation treatment in order to prevent bending or deforming, which would make the product unfit for use once it’s ready go out into production
The input text above doesn’t really convey what I want my output say so let me try again: “Not only do we need our products lightweight but also durable enough that they can withstand being carried around by customers on their daily commute.”

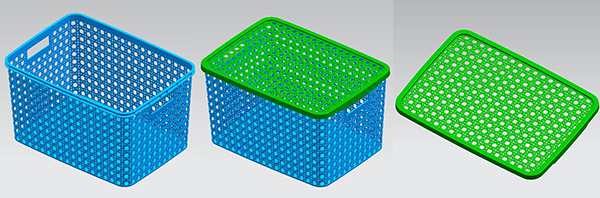

laundry basket

2、Gate design of storage basket mold

The storage basket mold uses multi-point needle valve gates to prevent trapped air from being incorporated into products. The location of these valves is determined by CAE analysis, which ensures that production will remain stable and efficient with branded hot runner selection!

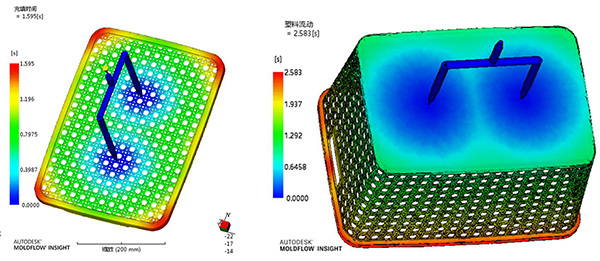

laundry basket moulds mold flow

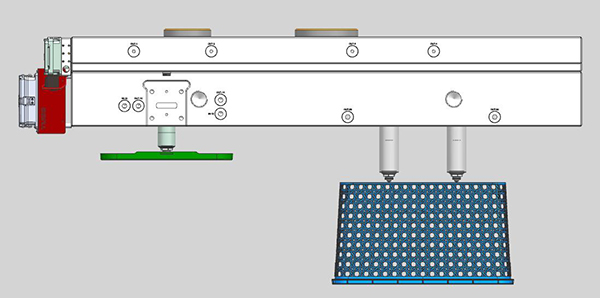

The storage basket can be produced by two-color injection molding machine to realize the production of lid and basket on one mold at the same time to save time and production cost.

Basket Mould Injection Gate

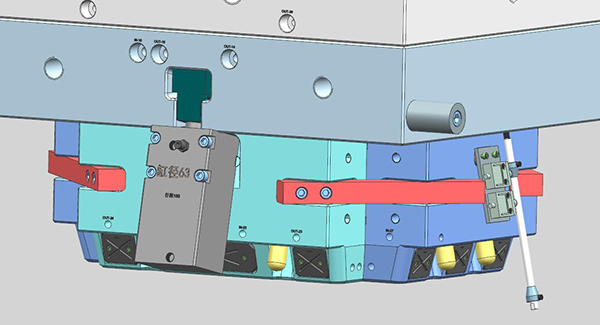

3、Slider core and ejection system of storage basket mold

Most of the storage basket mold are used four sides’ core-pulling mechanism.

Compared with the moving core-pulling can control the mold size and reduce the cost.

The movement of four sliders should be more uniform, efficient and stable.

laundry basket Mould Cavity

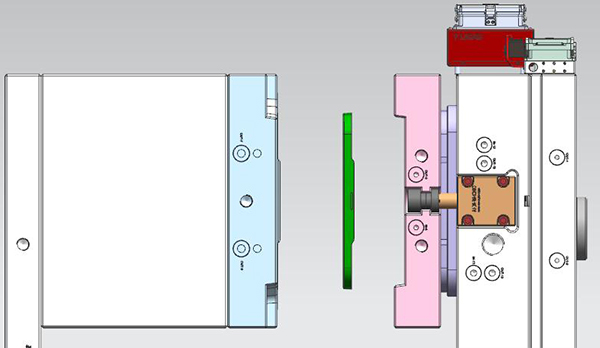

The lid usually adopts pushing plate ejecting first, and then picking up the parts by robot.

Basket Mould Ejector

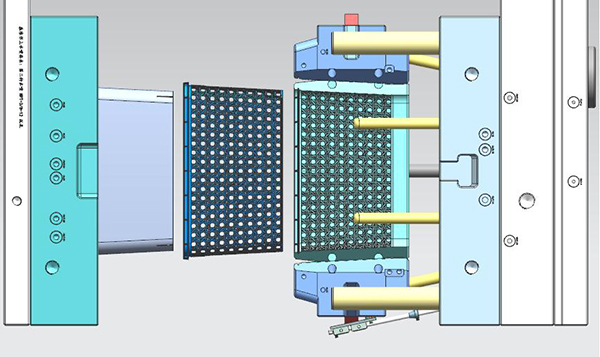

The basket usually adopts the four sides’ core-pulling first to keep the product on the moving mold,and then picking up the parts by robot.

Basket Mould

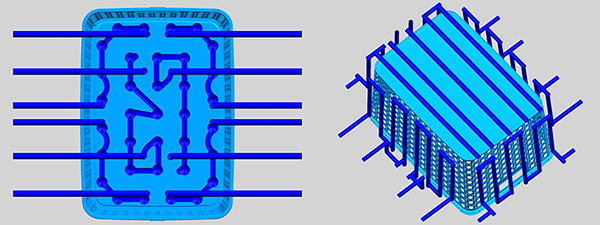

4、Cooling system of the storage basket mold

Proper cooling of the storage basket mold is crucial for production efficiency. The water circuit needs to be wide enough and at just right distance from each other so that it can effectively distribute heat while not blocking any part, which would lead towards slower operation due in parts being too hot or cold than desired
Molds need something else besides great designs–they also require excellent craftsmanship if we want them performed faultlessly during every single phase including injection process!

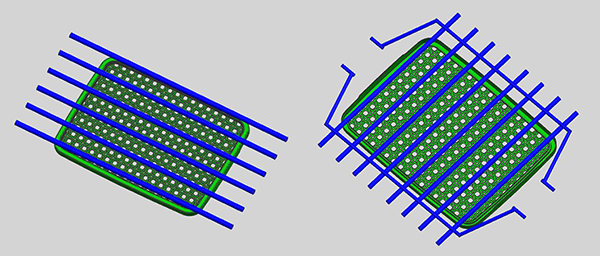

Basket Mould Cooling System
laundry basket mould cooling system

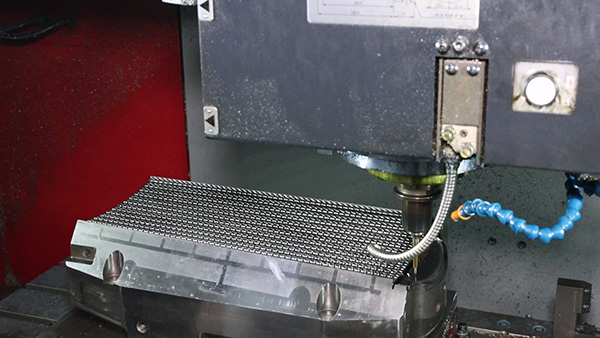

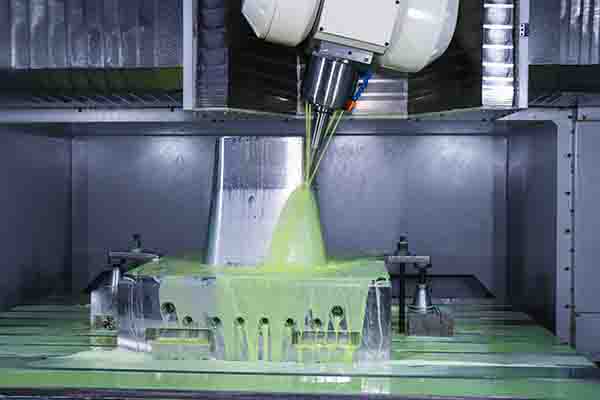

5、Plastic basket mold processing

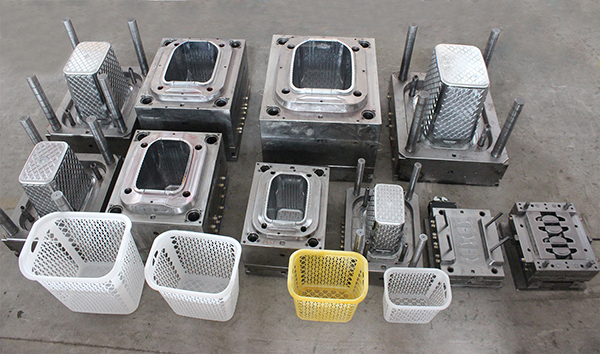

Basket molds are plastic injection molds used to produce plastic baskets. They are made up of a series of cores, cavities, sliders, and stripper plates. The cores and cavities are the negative shapes of the basket that will be injected with plastic. The sliders and stripper plates are used to remove the plastic baskets from the mold. Basket molds can be made from a variety of materials, but the most common material is steel. P20 is strong and durable, making it ideal for high-volume production runs. Basket molds can be made to produce a variety of different sizes and shapes of baskets, making them versatile tools for many different applications.

1. Core: It is the main body of the mold, and its function is to fix the cavity block;

2. Cavity block: The place where plastic products are formed;

3. Slider: It has the functions of demoulding and guiding in the movement of the core, it is also one of the important components to ensure the dimensional accuracy of plastic products;

4. Stripper plate: It is used to strip the core and has a certain guiding function. The four main parts cooperate with each other during molding to finally form plastic products that meet the requirements.

In addition, the production of basket molds also needs supporting cold runner systems and hot runner systems, which are also important components.

6、Plastic basket mold Injection molding

Plastic basket mould is one of the most popular injection moulds in plastic processing industry. It is widely used in daily life, such as fruit baskets, laundry baskets, storage baskets and so on. Basket moulds are usually made of plastic materials such as PP, The structure of the basket mold is very simple, and the processing technology is not very high.

plastic basket mould injection molding
